USB-C to Mini DisplayPort Adapter, 4K@60Hz, 21.6Gbps
A compact USB-C male to Mini DisplayPort female adapter supporting up to 4K@60Hz and 21.6Gbps for compatible displays and equipment.

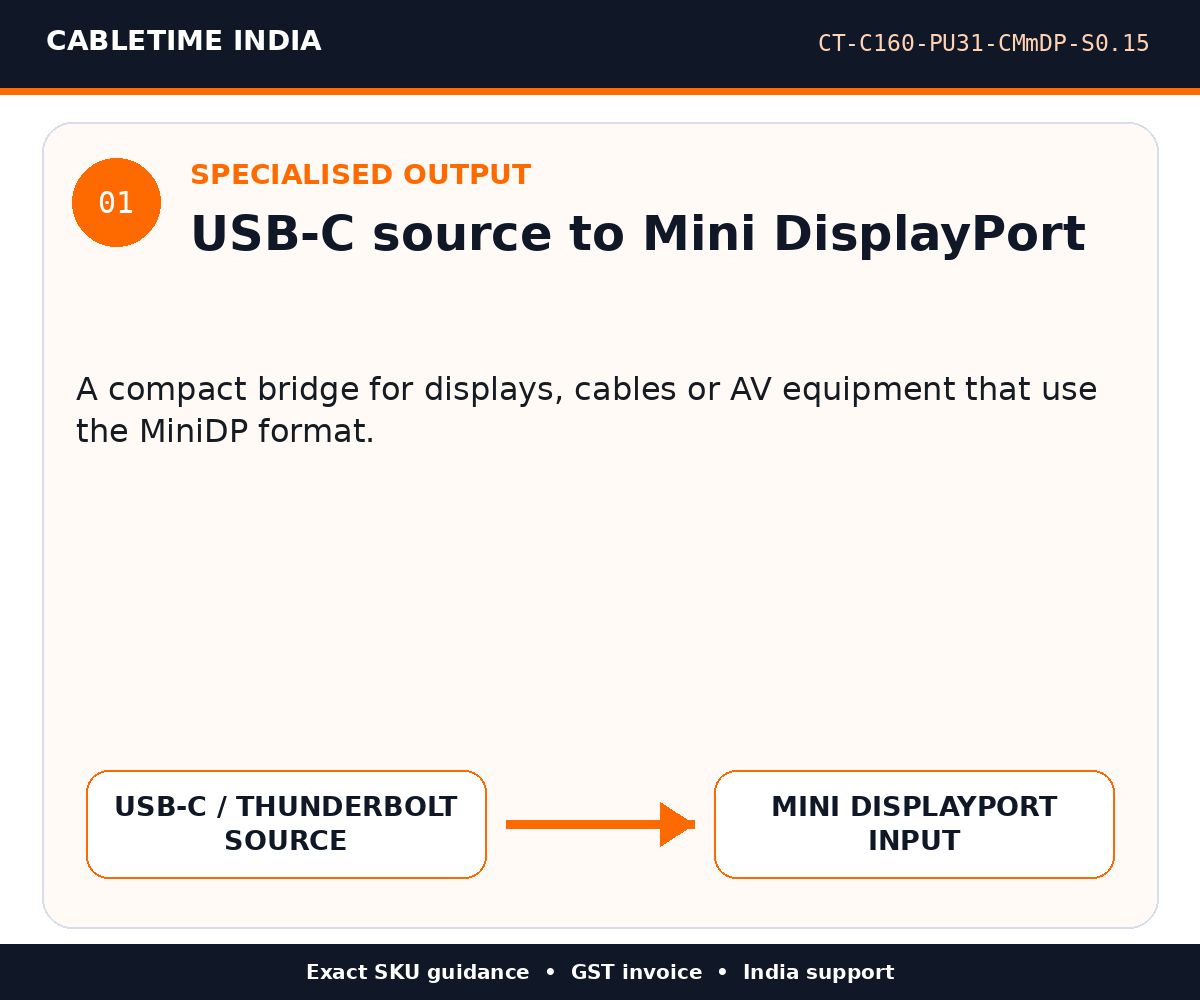

Connect a video-capable USB-C source to a Mini DisplayPort input
A specialised adapter for the Mini DisplayPort format
This product is useful when the display-side cable or equipment uses Mini DisplayPort rather than full-size DisplayPort or HDMI.
Its short 0.15-metre lead reduces mechanical strain and gives the female socket space away from the host port.
Check before ordering:Mini DisplayPort and Thunderbolt 1/2 share a connector shape but not every Thunderbolt-only display accepts a standard DisplayPort signal.
Exact technical specification
| Input / source | USB-C male, gold-plated |
|---|---|
| Output / display | Mini DisplayPort female, gold-plated |
| Display standard | DisplayPort 1.2, up to 21.6Gbps |
| Maximum listed video | 4K@60Hz |
| Construction | Aluminium-alloy/TPE shell, black TPE jacket, 4.5mm OD |
| Model / SKU | CP14A / CT-C160-PU31-CMmDP-S0.15 |
USE — step-by-step setup
- Verify DP Alt Mode or Thunderbolt video on the USB-C source.
- Connect the adapter to the source.
- Connect a compatible Mini DisplayPort cable or display lead to the female socket.
- Select the display input and configure the desired mode.
COMPATIBILITY — what it works with
Requires a video-capable USB-C source and a Mini DisplayPort receiving connection.
- Compatible with many DP Alt Mode USB-C and Thunderbolt laptops, tablets and selected phones.
- Use with Mini DisplayPort cables, monitors or equipment that accept a standard MiniDP signal.
- Not guaranteed for Apple Thunderbolt Display models that require a Thunderbolt protocol connection.
- Not bidirectional.
USER SCENARIOS — practical applications
- Specialised monitor: Connect a USB-C laptop to a MiniDP-equipped display.
- Existing cable reuse: Keep a suitable Mini DisplayPort cable already installed.
- AV integration: Bridge USB-C sources into MiniDP infrastructure.
- Travel kit: Carry a compact adapter for less-common display inputs.
FAQ — practical answers
Does it work with Apple Thunderbolt Display?
Compatibility is not guaranteed because that display requires Thunderbolt protocol, not only Mini DisplayPort video.
Does every USB-C port work?
No.
Is it bidirectional?
No.
Can it output 4K60?
Yes with compatible source, cable and display.
Genuine product identification, GST invoice, India support and the applicable product warranty. Match the exact SKU and connector direction before ordering.
Check the signal path first.
Identify the source and display or capture device, check connector type and conversion direction, then connect and select the correct input. Choose a video mode supported by the complete setup.
Will I always get the maximum listed resolution?
Actual output depends on the source, receiving device, intermediate equipment, selected mode and the length or version you choose. Check any length-specific limits in the product details.
Which length or version should I select?
Use the product selector to choose the required option. Check that option against any model, connector, length or pack-size distinctions in the specifications before ordering.
