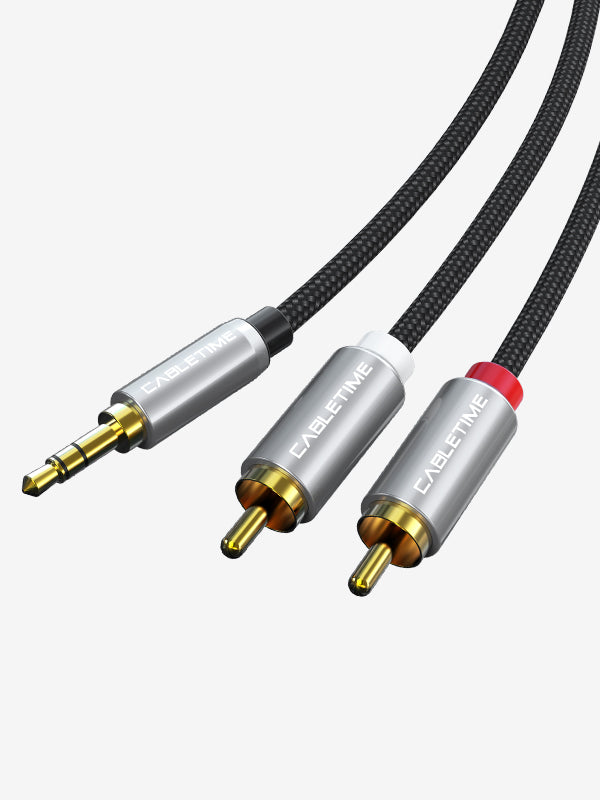

3.5mm Male to Dual RCA Male Stereo Audio Cable, 1m–5m
The CABLETIME CA13 Series carries analogue stereo audio from one 3.5mm male plug to two RCA male plugs. The red and white RCA connectors separate the right and left channels for compatible amplifiers, powered speakers, receivers, televisions and home-audio systems.
Connect a 3.5mm stereo source to red and white RCA audio inputs
3.5mm MaleStereo source connection.
2 × RCA MaleRed right-channel and white left-channel plugs.
28AWGShielded analogue-audio construction.
1m–5mFour selectable lengths.
Left and right analogue audio made clear
Connect the 3.5mm plug to a compatible headphone or line-level output. Connect the white RCA plug to the left input and the red RCA plug to the right input on the receiving audio equipment.
Analogue audio only:this cable does not convert digital audio, HDMI, optical or USB signals. It also does not amplify the signal or create surround sound.
Models, lengths and SKUs
| Model | Length | SKU |
|---|---|---|
| CA13H | 1m | CT-AV314-p12G-SG1 |
| CA13K | 1.8m | CT-AV314-p12G-SG1.8 |
| CA13N | 3m | CT-AV314-p12G-SG3 |
| CA13P | 5m | CT-AV314-p12G-SG5 |
Technical specifications

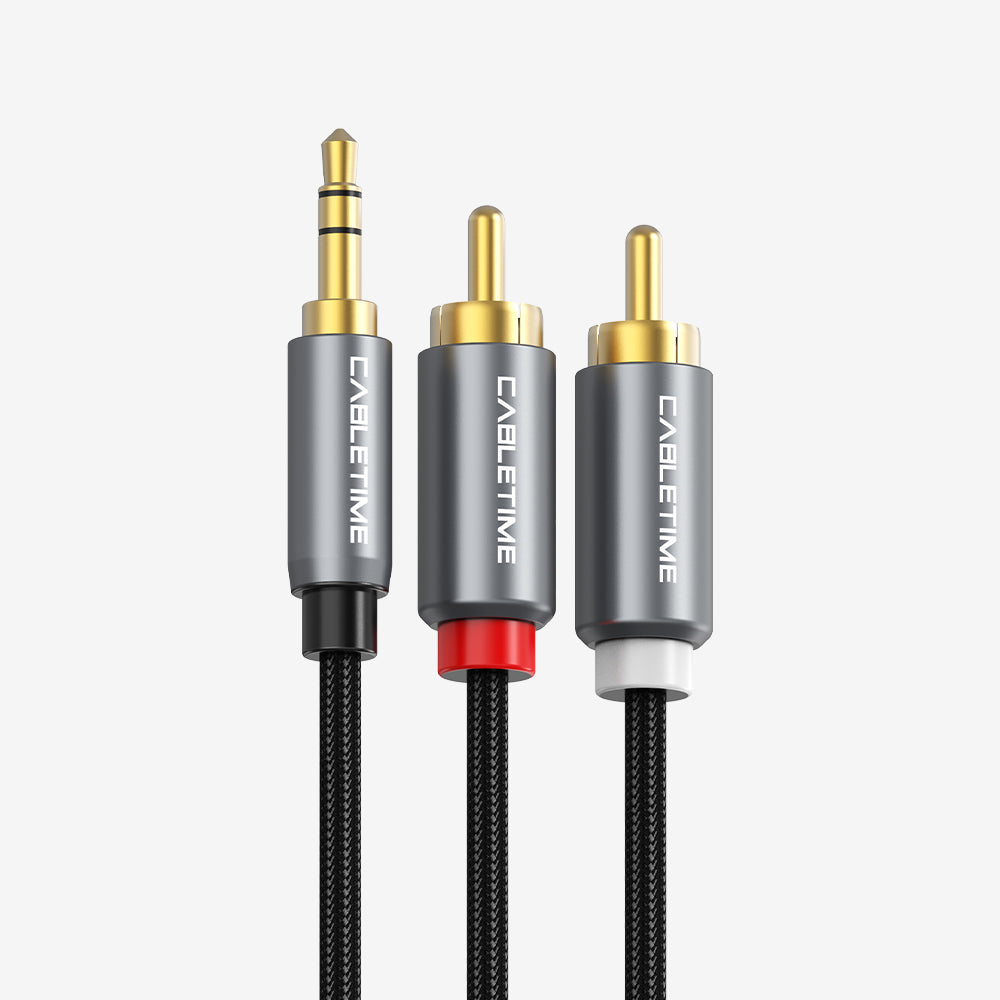

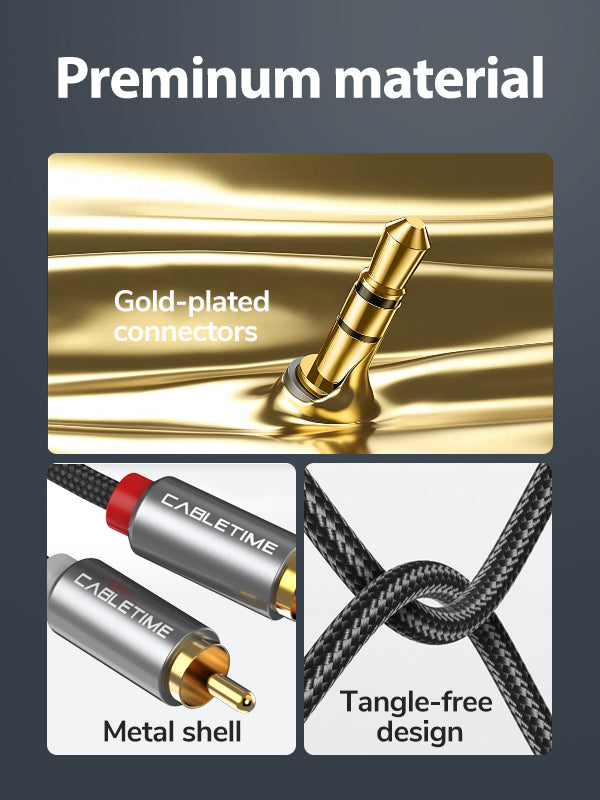

| Connector A | 3.5mm stereo male, gold-plated |
|---|---|
| Connector B | 2 × RCA male, red and white |
| Signal type | Unbalanced analogue stereo audio |
| Wire | 28AWG construction with aluminium shielding |
| Jacket | PVC with nylon-braided outer layer |
USE
Connect laptops, tablets, phones with a suitable 3.5mm output, portable players and other stereo sources to amplifiers, powered speakers, AV receivers, TVs or audio systems with RCA inputs.
COMPATIBILITY
The source needs a compatible 3.5mm analogue output and the receiving device needs left/right RCA analogue inputs. Some phones require a separate USB-C or Lightning audio adapter.
FAQ
Which RCA plug is left? White is normally left and red is right.
Can it work in the reverse signal direction? Analogue audio can pass through compatible connections, but the fixed plug layout must suit the equipment.
Does it carry video? No. It carries analogue stereo audio only.
Genuine CABLETIME product • GST invoice • India-based assistance • Applicable warranty support • Exact model and SKU identification
Available options
| Option | SKU |
|---|---|
| 1m | CF13H |
| 1.8m | CF13K |
| 3m | CF13N |
| 5m | CF13P |
Choose your option using the product selector above. Availability is shown for the selected option.
Match the audio connections.
Check connector size, contact arrangement and signal direction. Reduce volume before connecting, select the appropriate input or output and raise the listening level gradually.
Will matching plugs guarantee compatibility?
Check the required audio signal, microphone support and input/output role. Physically similar connectors can carry different signals; use the product-specific guidance above.
Which length or version should I select?
Use the product selector to choose the required option. Check that option against any model, connector, length or pack-size distinctions in the specifications before ordering.
