HDMI Capture Card with 4K@30Hz Loop-Out, 1080p@60Hz Capture, Mic & Headphone Ports

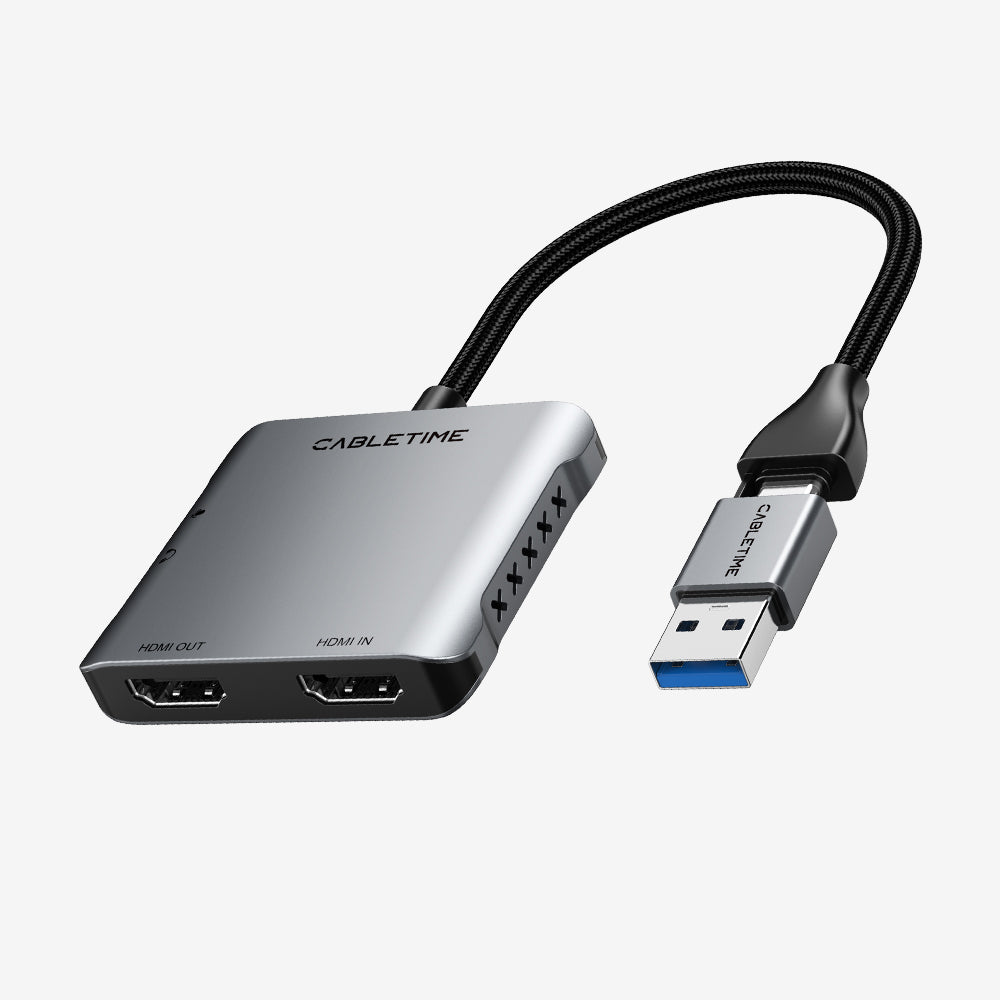

The CABLETIME CB67G combines HDMI capture, real-time HDMI loop-out, USB-A/USB-C host connectivity, a microphone input for commentary and a headphone output for audio monitoring. It accepts and loops up to 4K@30Hz while capturing to the host at up to 1080p@60Hz.
Designed for your setup
CABLETIME INDIA • CB67G • CAPTURE + LOOP-OUT + AUDIO CONTROL
Capture in 1080p60 while monitoring the source through 4K30 HDMI loop-out
1080p@60HzFull HD capture to the host.
4K@30Hz Loop-OutPlay or monitor on an external display.
Mic InputAdd compatible live commentary.
Headphone OutputMonitor compatible audio during capture.
Complete capture workflow

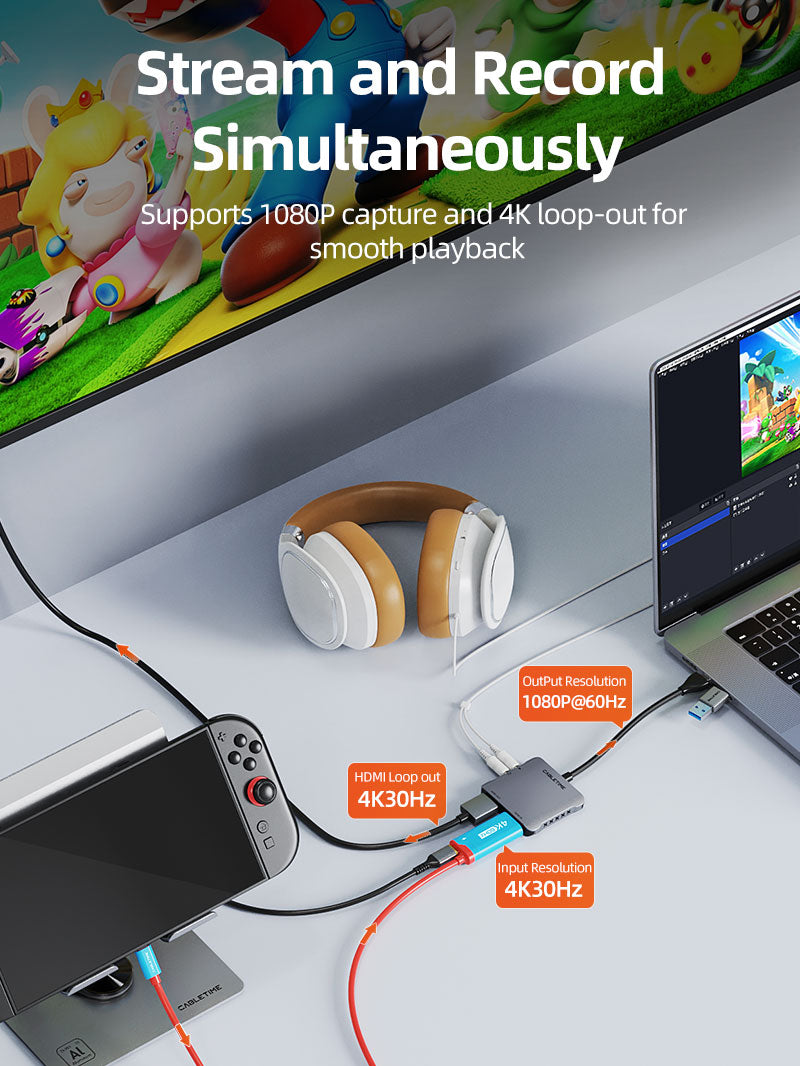

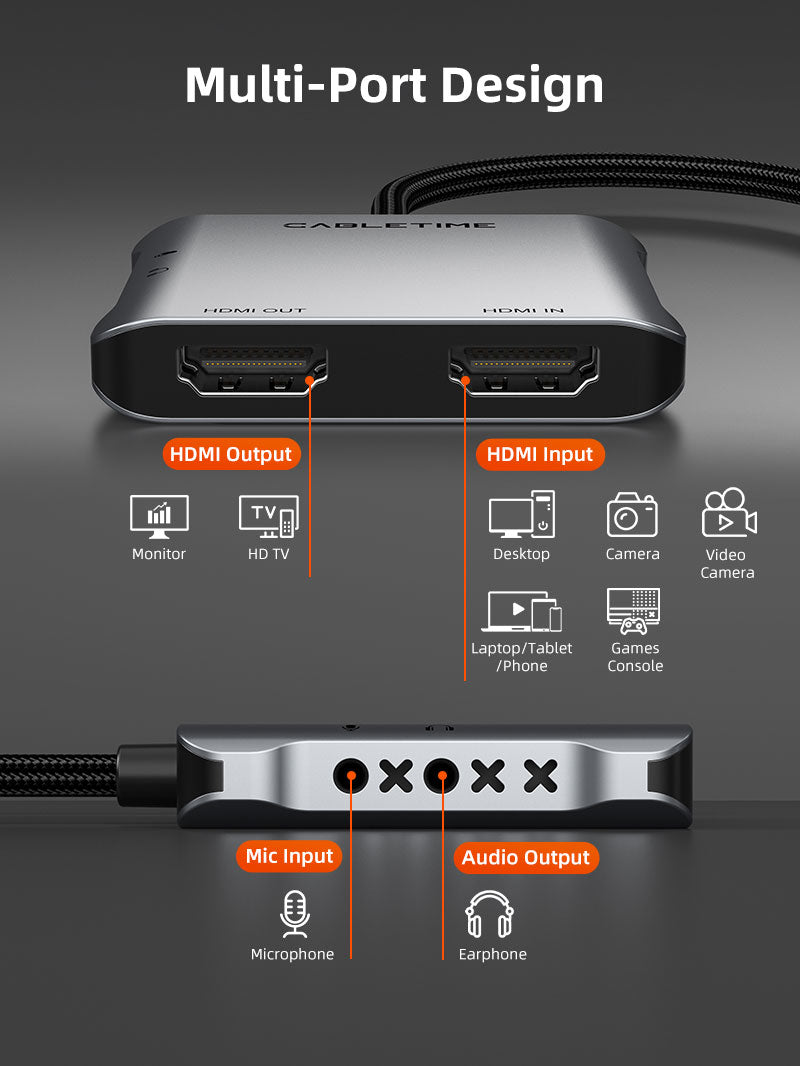

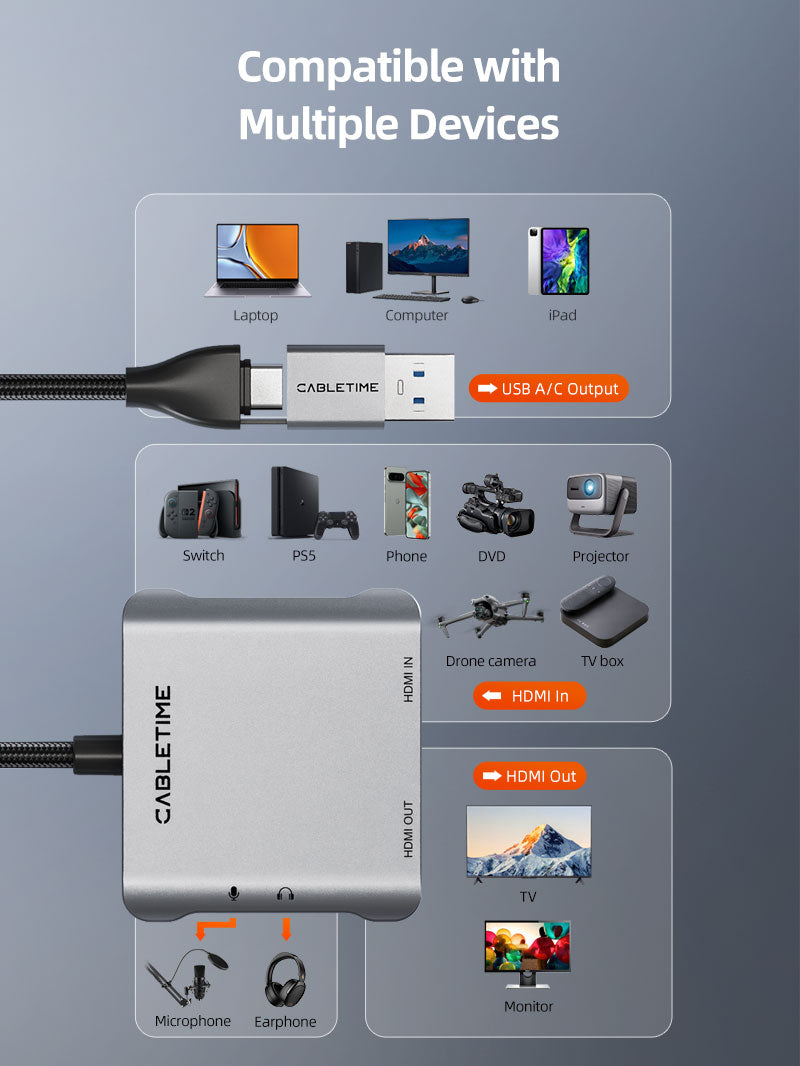

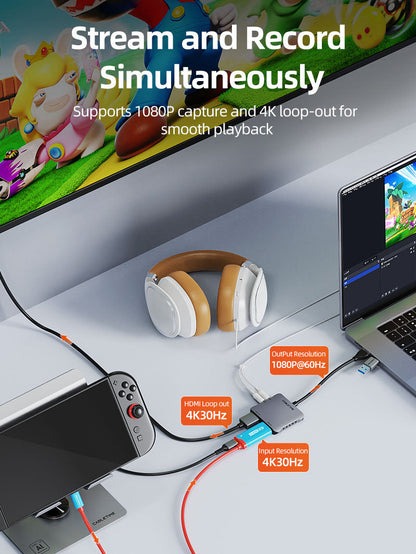

Connect the HDMI source to HDMI IN, connect HDMI OUT to the play or monitoring display, and connect USB-A or USB-C to the capture computer. A compatible microphone can be connected for commentary, while headphones can be used for monitoring.
Resolution distinction:4K@30Hz applies to HDMI input and loop-out. The maximum captured stream sent to the host is 1080p@60Hz. This model does not include the separate 100W PD feature of CB66G.
Technical specifications
| Brand | CABLETIME |
|---|---|
| Model / SKU | CB67G / CT-ACHC3L-AG |
| HDMI input | HDMI female, up to 4K@30Hz |

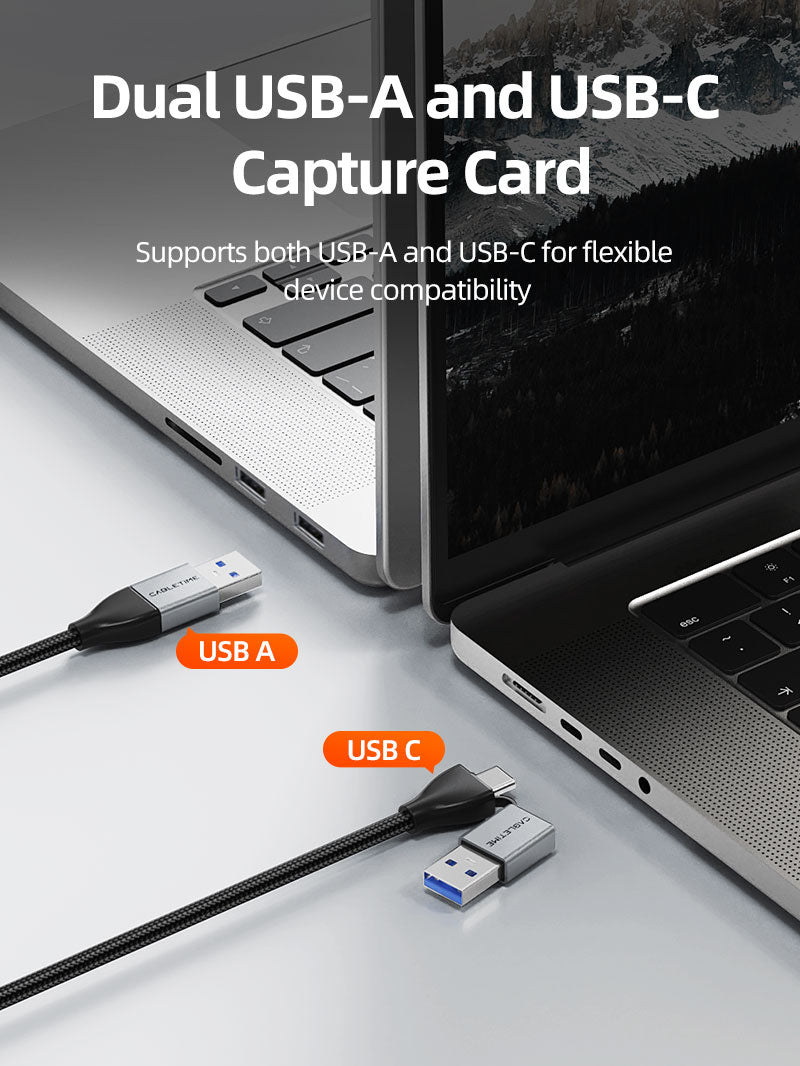

| Capture output | USB-A + USB-C 3.0, up to 1080p@60Hz |
| HDMI loop-out | Up to 4K@30Hz |
| Audio connections | Microphone input and headphone/audio-monitoring output |

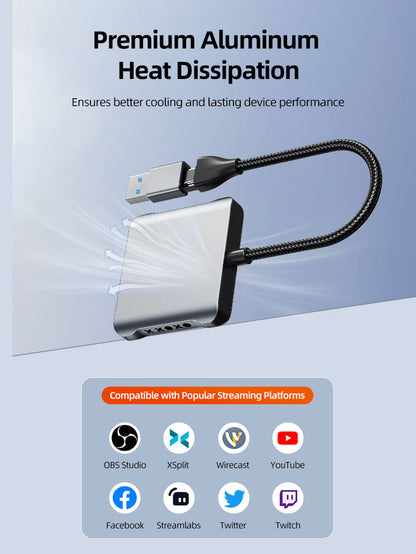

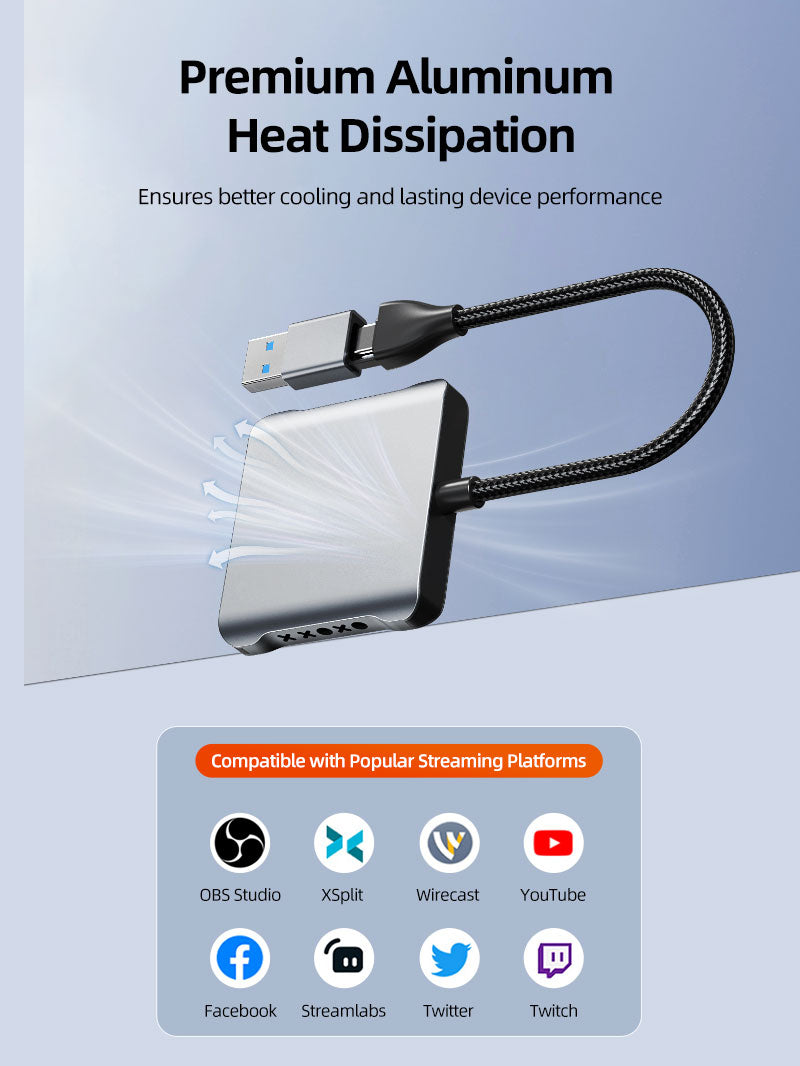

| Material | Aluminium shell |
USE
Designed for gameplay streaming, camera capture, tutorials, webinars, online teaching, live demonstrations and presentations that benefit from local HDMI monitoring.
COMPATIBILITY
Use with compatible capture software such as OBS, Streamlabs or XSplit. The source, host, monitor and software must support the selected modes. HDCP-protected content may not be capturable.
FAQ
Does it record in 4K? No. Capture is up to 1080p60; 4K30 is for input and loop-out.
Can I hear the source while streaming? The headphone output supports compatible monitoring workflows.
Does it charge the host at 100W? No 100W PD function is claimed for CB67G.
Genuine CABLETIME product • GST invoice • India-based assistance • Two-year warranty support • Exact CB67G identification
Check the signal path first.
Identify the source and display or capture device, check connector type and conversion direction, then connect and select the correct input. Choose a video mode supported by the complete setup.
Will I always get the maximum listed resolution?
Actual output depends on the source, receiving device, intermediate equipment, selected mode and the length or version you choose. Check any length-specific limits in the product details.
Which length or version should I select?
Use the product selector to choose the required option. Check that option against any model, connector, length or pack-size distinctions in the specifications before ordering.
