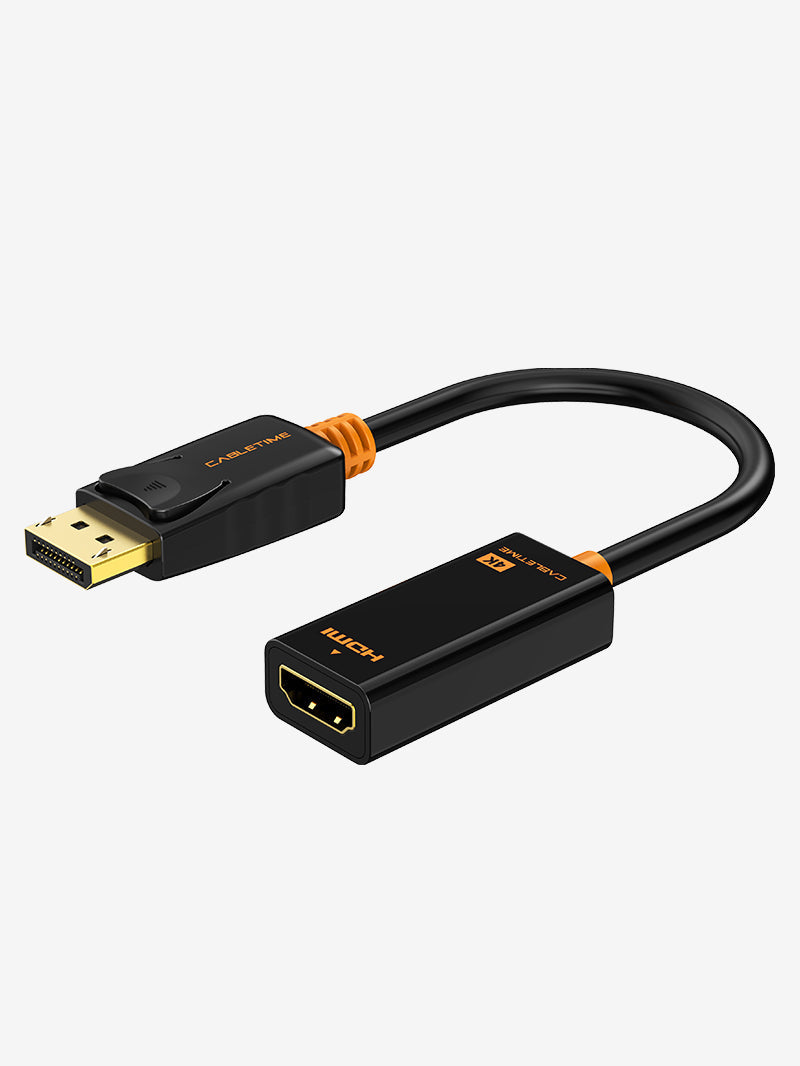

DisplayPort to HDMI Adapter, 4K@30Hz, 0.2m
Our CP23B adapter connects a compatible DisplayPort computer to an HDMI cable and display at up to 4K@30Hz, while the short flexible lead reduces stress around the source port.
Turn a DisplayPort output into an HDMI connection in a compact 0.2-metre adapter
4K@30HzCompatible UHD outputDP → HDMIFixed conversion directionHDMI FemaleUse your preferred HDMI cable0.2mShort flexible adapter leadA practical adapter for monitors, televisions and projectors
Connect the DisplayPort male plug to the computer or graphics card, then connect a compatible HDMI male-to-male cable between the adapter and the display. Select the HDMI input and required display mode.

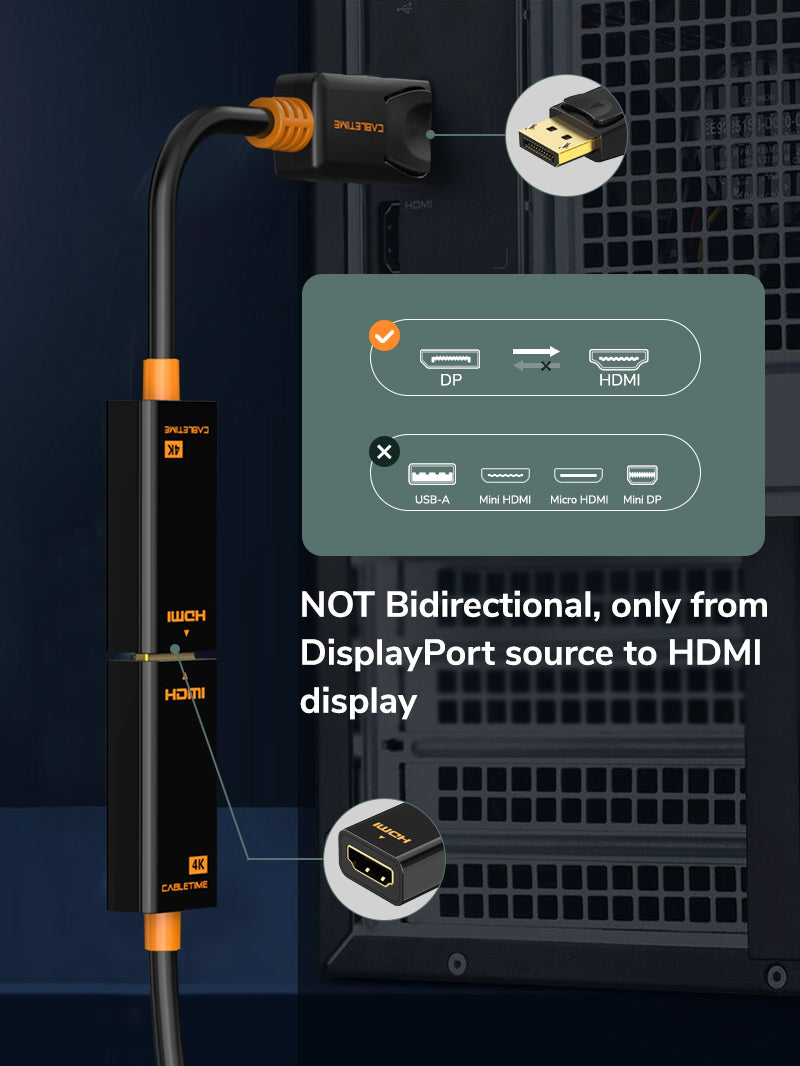

One-way operation: it converts DisplayPort source to HDMI display. It cannot connect an HDMI-source device to a DisplayPort monitor.
Technical specifications

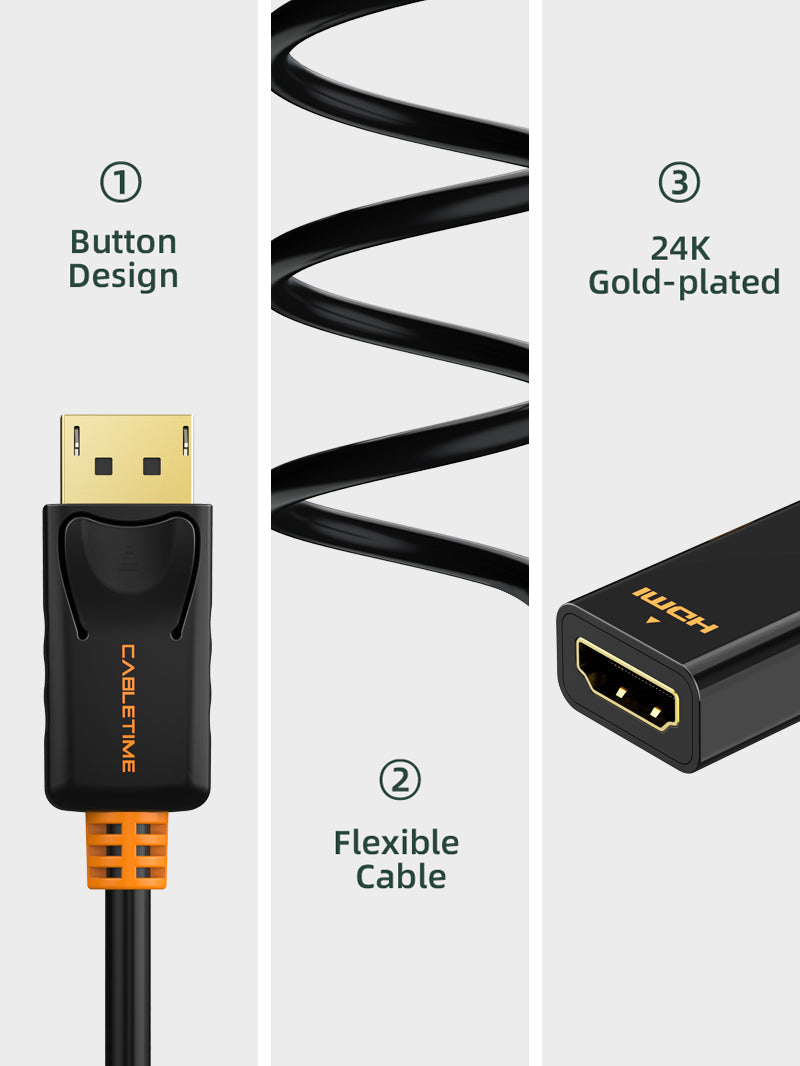

| Source connector | DisplayPort male, gold-plated |
|---|---|
| Display-side socket | HDMI female |

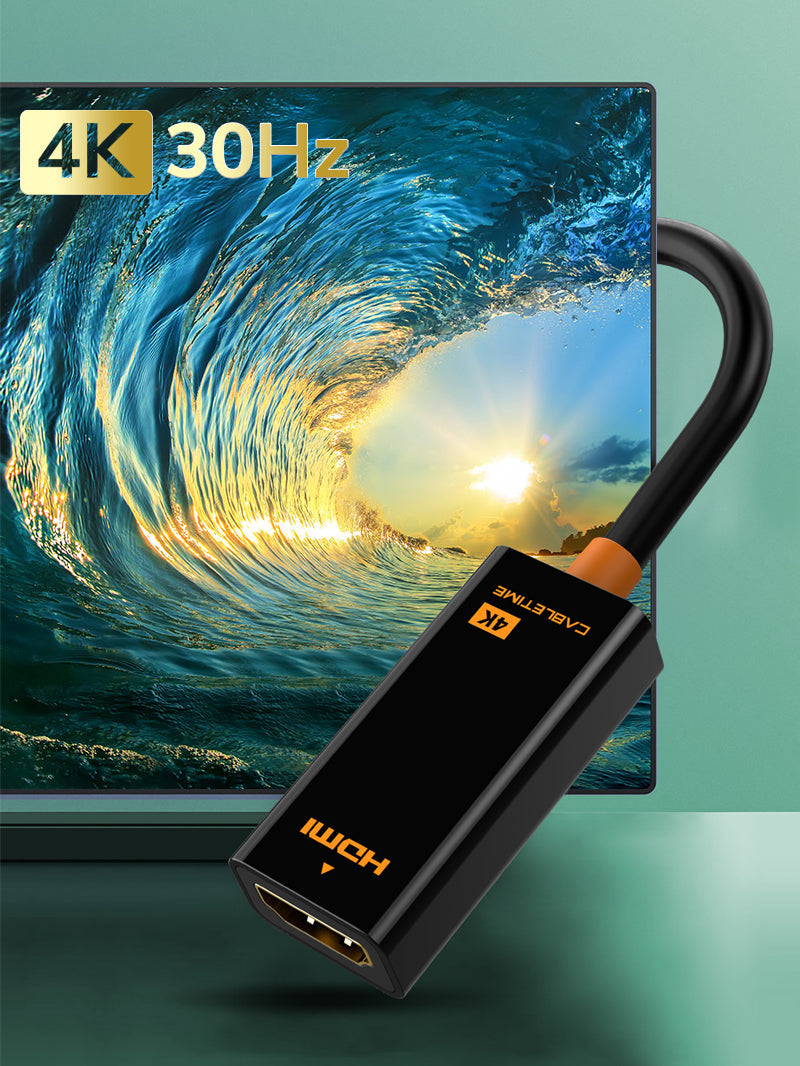

| Maximum video | Up to 4K@30Hz with compatible equipment |
| Length / model / SKU | 0.2m / CP23B / CT-AV586-01G(4K)-B0.2 |
USE
- Connect the adapter to the DisplayPort source.
- Connect an HDMI cable to the female socket.
- Connect the other end to the HDMI display.
- Select the HDMI input and configure resolution.
COMPATIBILITY
For full-size DisplayPort outputs and HDMI-input displays. The HDMI cable and display must support the selected resolution.
USER SCENARIOS
- Desktop GPU to HDMI monitor
- Office PC to television
- Meeting-room projector adapter
- Travel and IT support kit
FAQ
Is an HDMI cable included?
This adapter provides an HDMI female socket; connect a suitable HDMI cable.
Can it run HDMI to DisplayPort?
No.
Does it need a driver?
No driver is normally required for a compatible DisplayPort output.
genuine product, GST invoice, India support and applicable warranty.
Check the signal path first.
Identify the source and display or capture device, check connector type and conversion direction, then connect and select the correct input. Choose a video mode supported by the complete setup.
Will I always get the maximum listed resolution?
Actual output depends on the source, receiving device, intermediate equipment, selected mode and the length or version you choose. Check any length-specific limits in the product details.
Which length or version should I select?
Use the product selector to choose the required option. Check that option against any model, connector, length or pack-size distinctions in the specifications before ordering.
